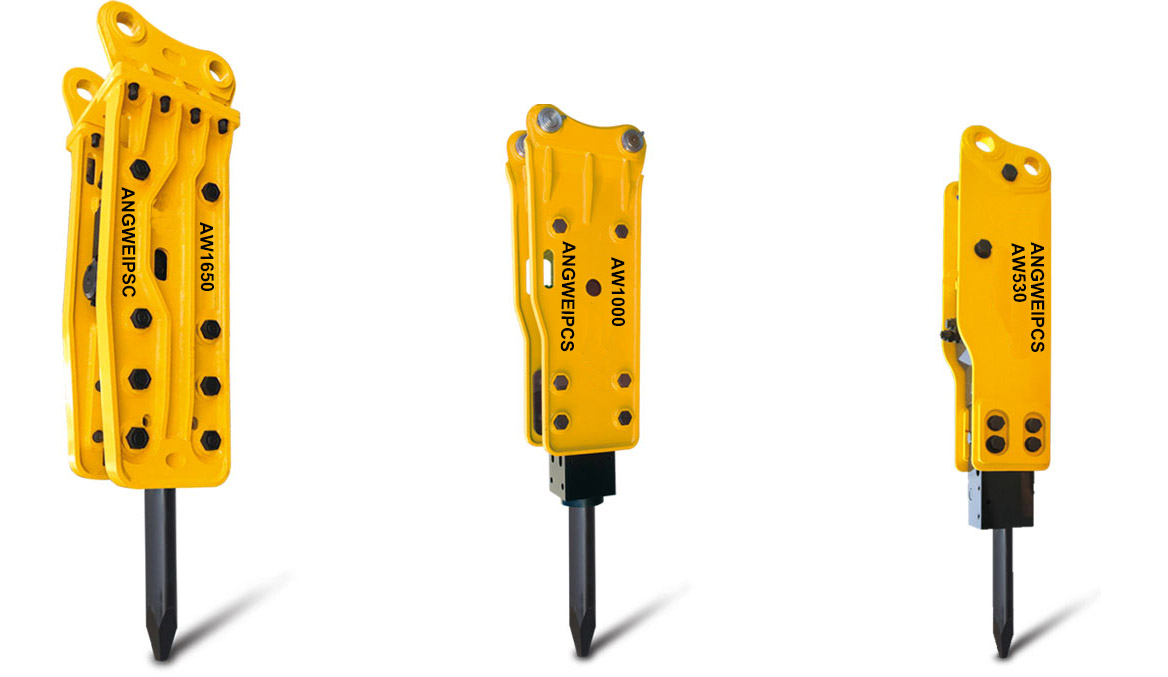

| TOP TYPE | |||||||||||||
| Category | Unit | AW400 | AW450 | AW530 | AW680 | AW750 | AW850 | AW1000 | AW1400 | AW1500 | AW1550 | AW1650 | AW1750 |
| Carrier weight | ton(lbs) | 0.8-2.5 | 1.2-3.0 | 2.5-4.5 | 4.0-7.0 | 6.0-9.0 | 7.0-14.0 | 11.0-16.0 | 18-26 | 25-30 | 28-35 | 30-45 | 40-55 |
| (1,764-5,511） | (2,645-6,614） | (5,511-9,920) | (8,818-15,432) | (13,228-19,841) | (15,432-30,865) | (24,251-35,274) | (39,683-57,320) | (55,116-66139) | (61,729-77,162) | (66,139-99,208) | (88,185-121,254) | ||
| Tool diameter | mm(inch) | Φ40(1.6) | Φ45(1.8) | Φ53(2.1) | Φ68(2.7) | Φ75(3.0) | Φ85(3.3) | Φ100(3.9) | Φ140(5.5) | Φ150(5.9) | Φ155(6.1) | Φ165(6.5) | Φ175(6.9) |
| Operating weight(side type) | kg(lbs) | 77(169) | 99(218) | 132(290) | 275(605) | 407(895) | 561(1,234) | 842(1,852) | 1,950(4,290) | 2,359(5,190) | 2,655(5,841) | 2,915(6,413) | 4,167(9,167) |
| Operating weight (top type) | kg(lbs) | 99(218) | 121(266) | 148(326) | 321(706) | 413(909) | 629(1,384) | 979(2,154) | 2,050(4,510) | 2,271(4,996) | 3,059(6,730) | 3,295(7,249) | 4,216(9,275) |
| Operating weight(box type) | kg(lbs) | 113(249) | 139(306) | 168(370) | 325(715) | 418(920) | 638(1,407) | 948(2,086) | 1,978(4,352) | 2,279(5,014) | 2,896(6,371) | 3,117(6,857) | 4,390(9,658) |
| Height | mm(inch) | 1,135(44.7) | 1,213(47.8) | 1,317(51.9) | 1,899(74.8) | 2.161(85.0) | 2,316(91.2) | 2,813(110.7) | 3,063(1120.6) | 3,215(126.6) | 3,475(136.8)) | 3,736(147.1) | |
| Required oil flow | l/min(g/min) | 15-30(4.0-8.0) | 20-40(5.3-10.6) | 25-50(6.6-13.2) | 40-70(10.6-18.5) | 50-90(13.2-23.8) | 60-100(15.9-26.4) | 80-110(21.1-29.1) | 120-180(31.7-47.6) | 160-180(2,276-2,560) | 180-240(47.6-63.4) | 200-260(50.8-68.7) | 210-290(55.5-76.6) |
| Operating pressure | bar(psi) | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| (1,280-1,707) | (1,280-1,707) | (1,280-1,707) | (1,560-1,991) | (1,707-2,134) | (1,849-2,276) | (2,134-2,418) | (2,276-2,560) | (2,276-2,560) | (2,276-2,560) | (2,276-2,560) | (2,276-2,560) | ||
| Impact rate | bpm | 800-1,400 | 700-1,200 | 600-1,100 | 500-900 | 400-800 | 400-800 | 350-700 | 350-500 | 300-450 | 300-450 | 200-350 | 200-350 |
| Hose diameter | mm(inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 | 5/4 | 5/4 |
| Back head pressure | kg/cm2 | 16 | 16 | 16 | 16 | 16±0.5 | 16±0.5 | 16±0.5 | 16±0.5 | 16-18 | 16-18 | 20-22 | 20-22 |
| Accumulator pressure | kg/cm2 | / | / | / | / | / | / | / | / | 60 | 60 | 65 | 65 |
| Valve ass'y position | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | |
| Specific data can be adjusted according to different machines size to do customized manufacturing. |
